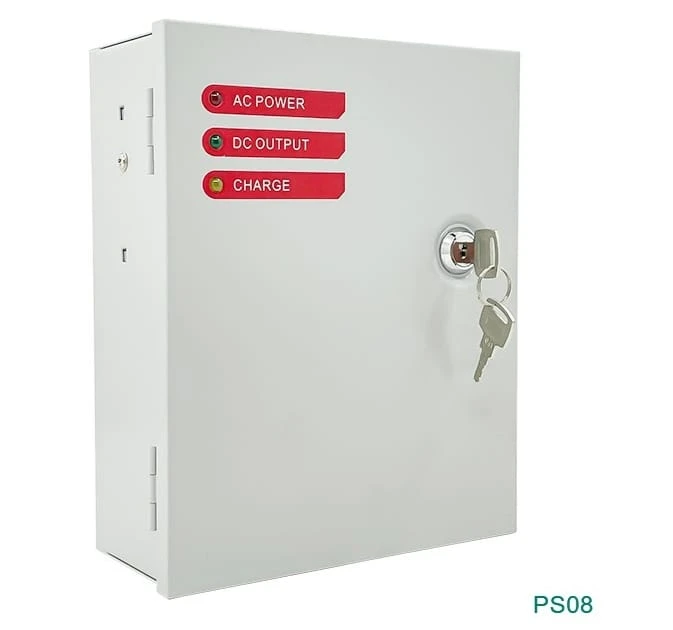

PS08 Switching Power Supply With Battery Backup(12V/3A)



PS08 Power Supply for Access Control System is a non-high-frequency interference ripple of linear DC power supply,.It is practical, simple interface, design features such as stability, performance. A power status indicator light, can direct that power failure, it is a good cost performance of the module.
Product Parameter | Parameter Description |
Model | PS08 |
Product Name | Switching Power Supply |
|
Lock Size | 205x165x75mm |
Output Current | 3A |
Frequency | 50 or 60Hz |
Input Voltage | 190 - 265VAC |
Output voltage | DC12V |
Voltage (AC mode) | 13.8V ±2% |
Rated Power | 52.5W (with charging) |
Charge Current | 800mA |
Protection overload | 3.6A ±5% |
Battery Type | 12V lead acid |
Ripple | ≤120mV |
Humidity | 20 ~ 80%RH |
Operating temperature | -20°C-50°C |
|
Weight | 1.05KG |
Standard Package | 10pcs |
Carton Weight | 10.5KG |
Carton Size | 42*37*24cm |
